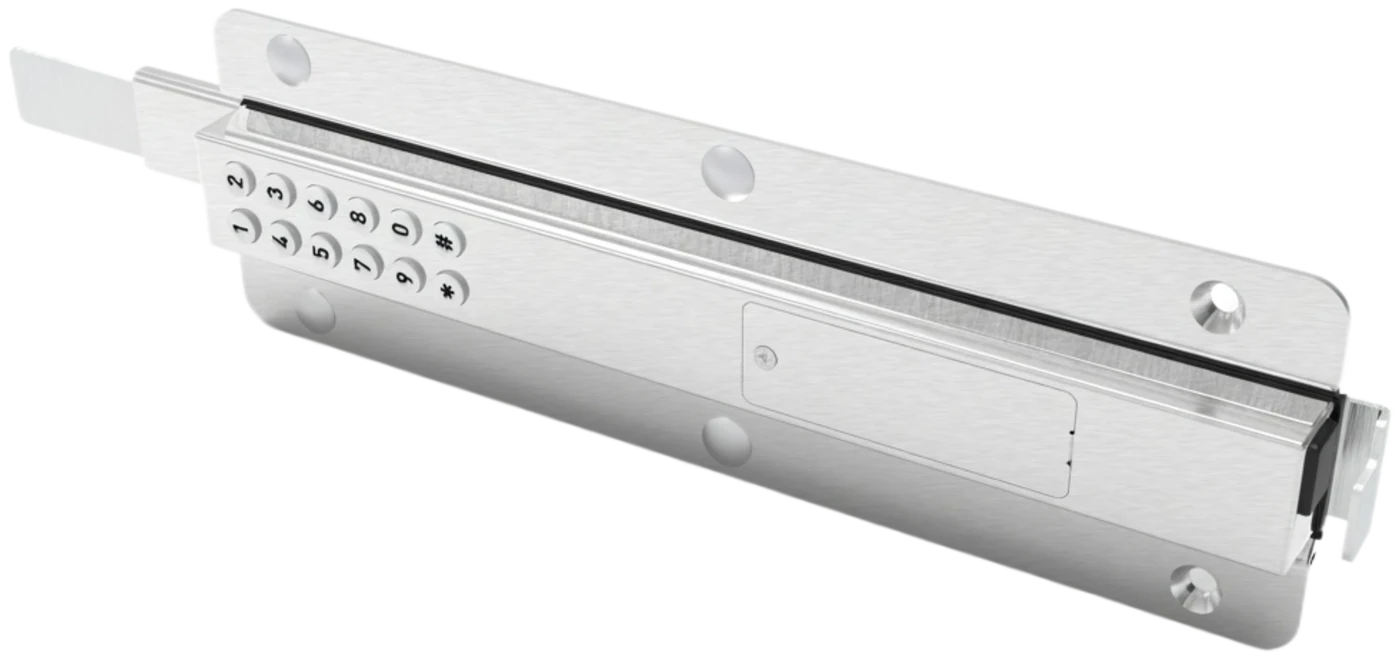

Smart Latch
Tailor-made for storage units. Four ways to open.
A stainless-steel smart latch for self-storage roller and swing doors. It opens by Bluetooth, passcode, one-time pincode or mechanical key, and runs 24+ months on four AA batteries.
- 0+ months
- Battery life
- ≤ 50 µA
- Standby current
- IP65
- Rated protection
- 0 mm
- Body length
Operator value
Built for the way storage sites run
Cost benefit
Cost-effective hardware that reduces running costs.
Remote control
Remote unlocking that saves on staffing costs.
Leasing status
Rented or vacant status for each unit, tracked instantly.
Overdue customers
Lock overdue units and prevent overstaying.
One-click access sharing
Grant permission instantly with easy authorization.
Real-time monitoring
Battery usage and lock status at a glance.
Access methods
Four ways to open one latch
Bluetooth, passcode, one-time pincode and mechanical key. The latch communicates over Bluetooth only, with no network dependency at the door.
- 01
Bluetooth
Unlock from the EliteLock App on the phone.
- 02
Passcode
Keypad entry with anti-peep protection.
- 03
One-time pincode
Single-use codes generated and shared in the app.
- 04
Mechanical key
Key override with a mechanical backup key.
Emergency power is available through the Type-C external input.
Product features
Engineered for daily operation
Stainless steel construction
Scratch and rust resistant, high strength and anti-vandalism.
Battery efficiency
Standby current of 50 µA or less. Up to 24+ months on four AA batteries.
Semi-automatic operation
Smooth mechanical latch with a fail-safe design.
Easy battery replacement
Front-access compartment, with no removal required.
Universal installation
Roller and swing doors. Standardized mounting, toolkit included.
Emergency access
Type-C external power input and a mechanical key override.
In place
What it looks like on the door

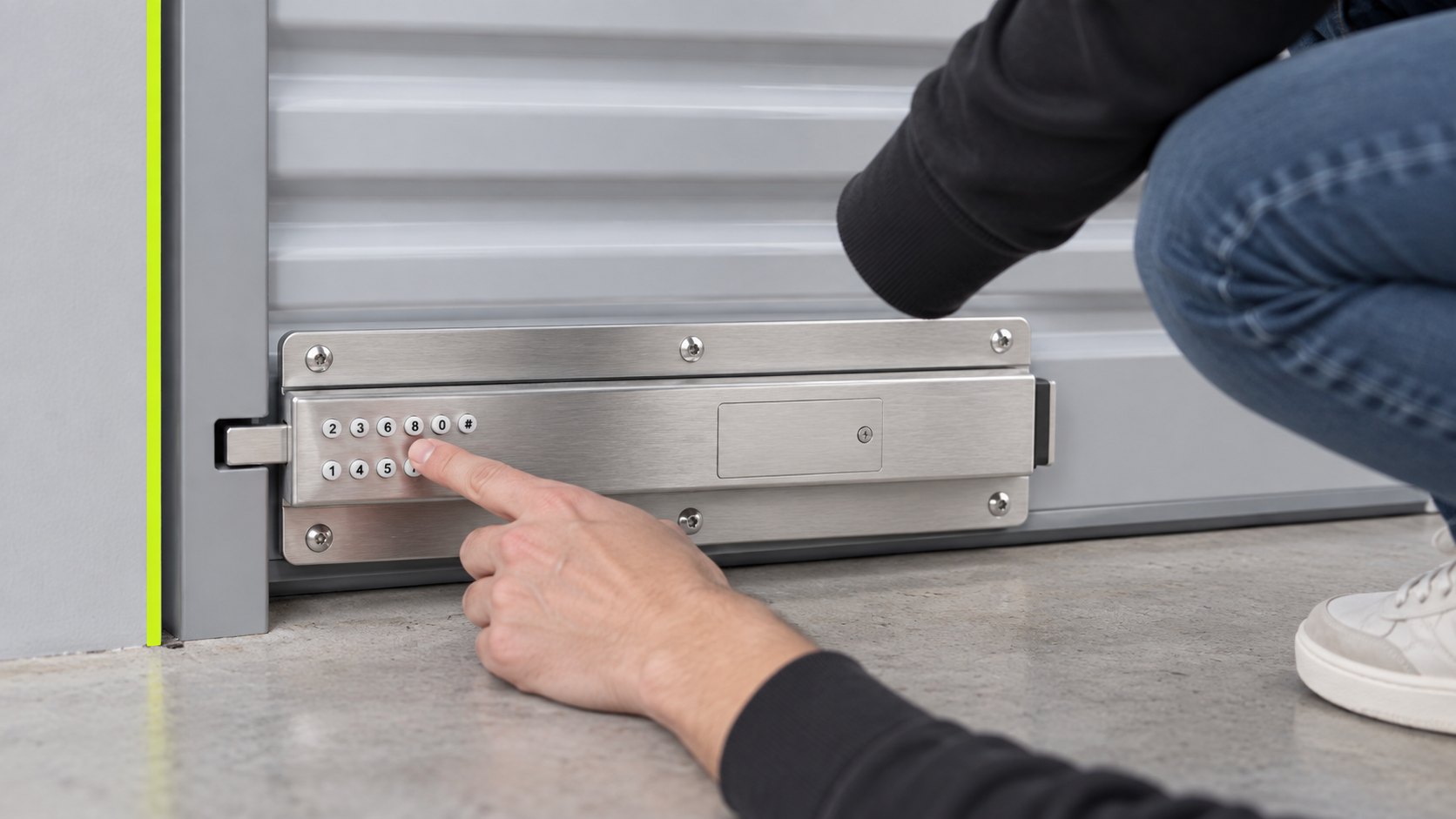

At the unit door
Fitted to the roller door's bottom rail with the bolt in the guide rail. Enter a passcode or a one-time pincode at the keypad.

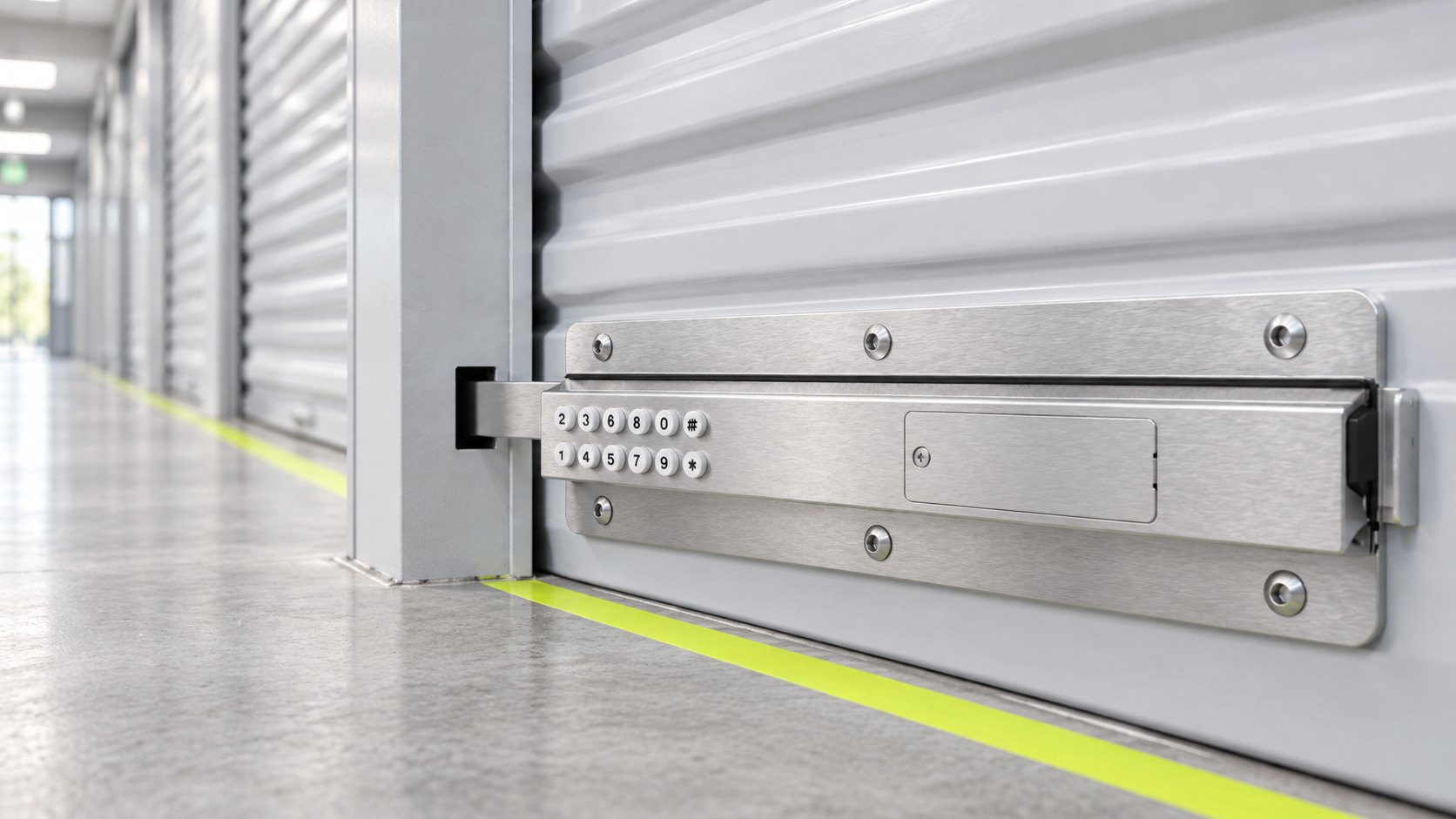

Self-storage
One latch per unit along the corridor, each reporting lock status and battery level to the operator.

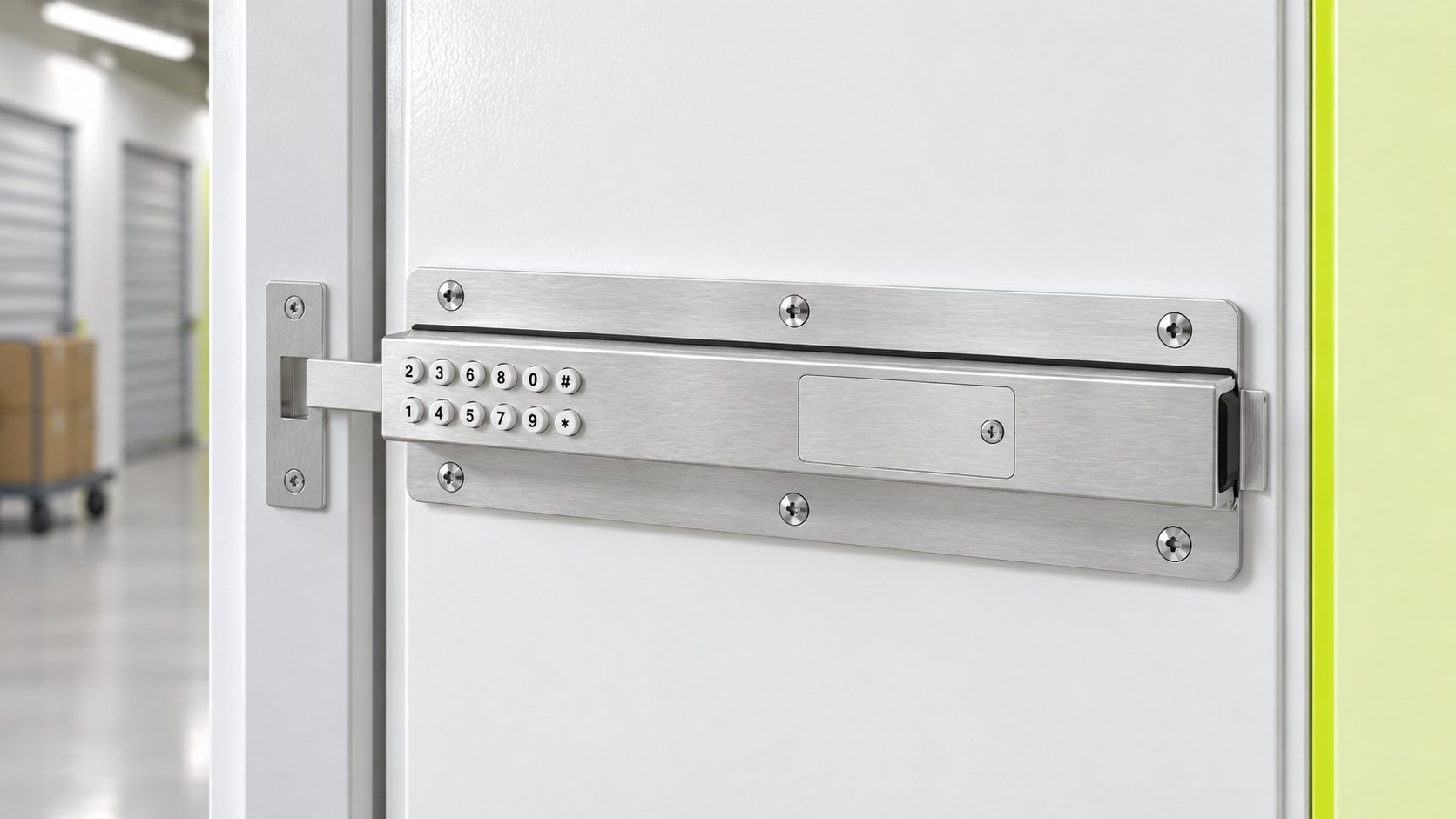

Swing doors
The same latch fits hinged swing doors, with standardized mounting.
Engineering details
Product specifications
- Body material
- Stainless steel 201 & 304
- Panel material
- Silicone buttons
- Dimensions
- 344 × 96 × 23 mm (excl. slider)
- Lock weight
- Gross 620 g · net 580 g
- Communication
- Bluetooth only · no network dependency
- Power source
- 4 × AA batteries
- Battery life
- 24+ months · standby ≤ 50 µA
- Emergency power
- Type-C external input
- Emergency access
- Mechanical key override · backup key
- Certification
- CE · FCC-ID · UN38.3 · IP65
- Storage unit doors
- Roller door & swing door
Drag to turn
- 344 × 96 × 23
- Body · mm
- 580 g
- Net weight
- 4 × AA
- Power
Security & data
Security built into every unlock
Time-limited credentials, encrypted transport and a time-stamped record of every access.
Proprietary algorithm
Time-limited access credentials are generated with encrypted mechanisms, reducing the risk of password reuse.
Encrypted communication
HTTPS-based encryption protects data between the lock, the gateway and the management system.
Access log tracking
Every access event is recorded with time and user, so operators can review entry history.
Remote management
Remote unlocking, permission grant and revocation, and lock status monitoring from the management platform.
Management & integration
One latch. Connected to your management system.
EliteLock App
Everyday management
Real-time status and user access on the phone.
- Time-stamped access logs
- One-time pincodes
- Low-battery alerts
Backend integration
Remote visibility
Lock data reported back to the operator console.
- Lock status
- Remote battery levels
- Exportable access logs
Smart Latch
Field device
Stainless-steel body with a semi-automatic, fail-safe latch.
- Front-access battery change
- Roller and swing doors
- Toolkit included
Third-party integration
A standardized API connects the latch to third-party self-storage management systems for centralized access control and permission management. Suitable for single-site and large-scale operator deployments.
Rollout
Fitted, authorized, opened

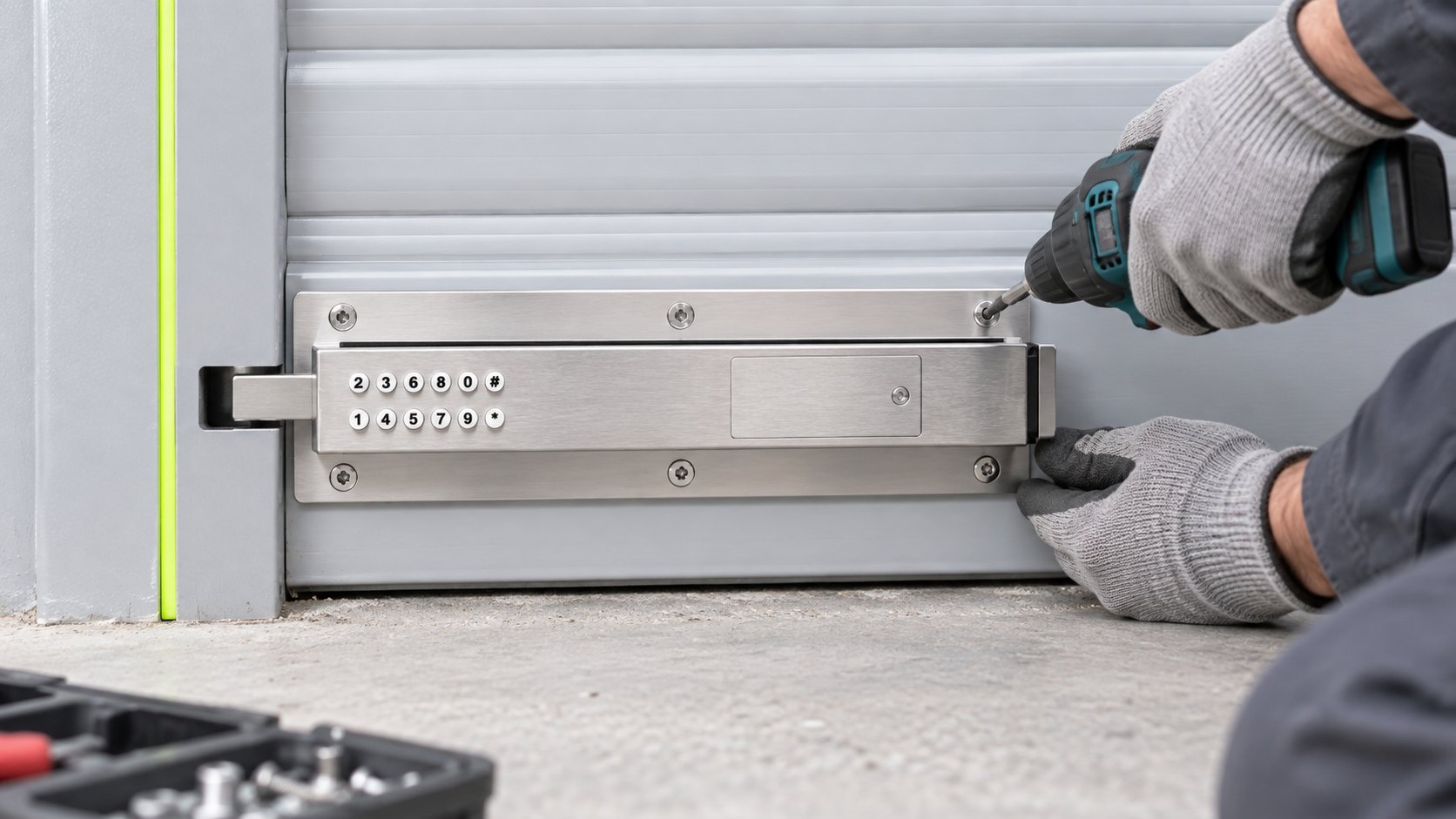

On the door
Standardized mounting with the toolkit included. Four AA batteries run it for 24+ months.

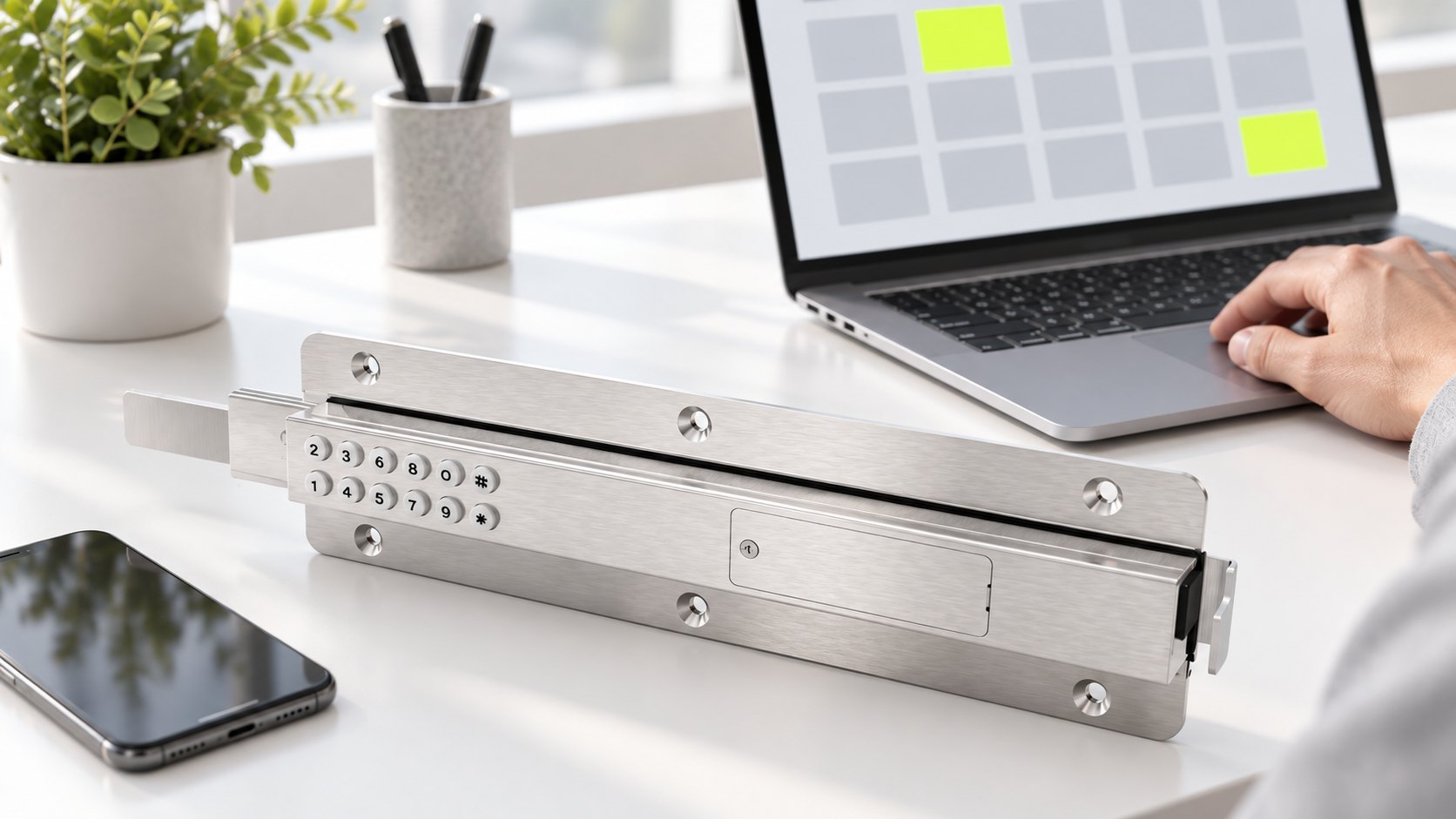

In the console
Leasing status, lock status and battery levels for every unit, with exportable access logs.

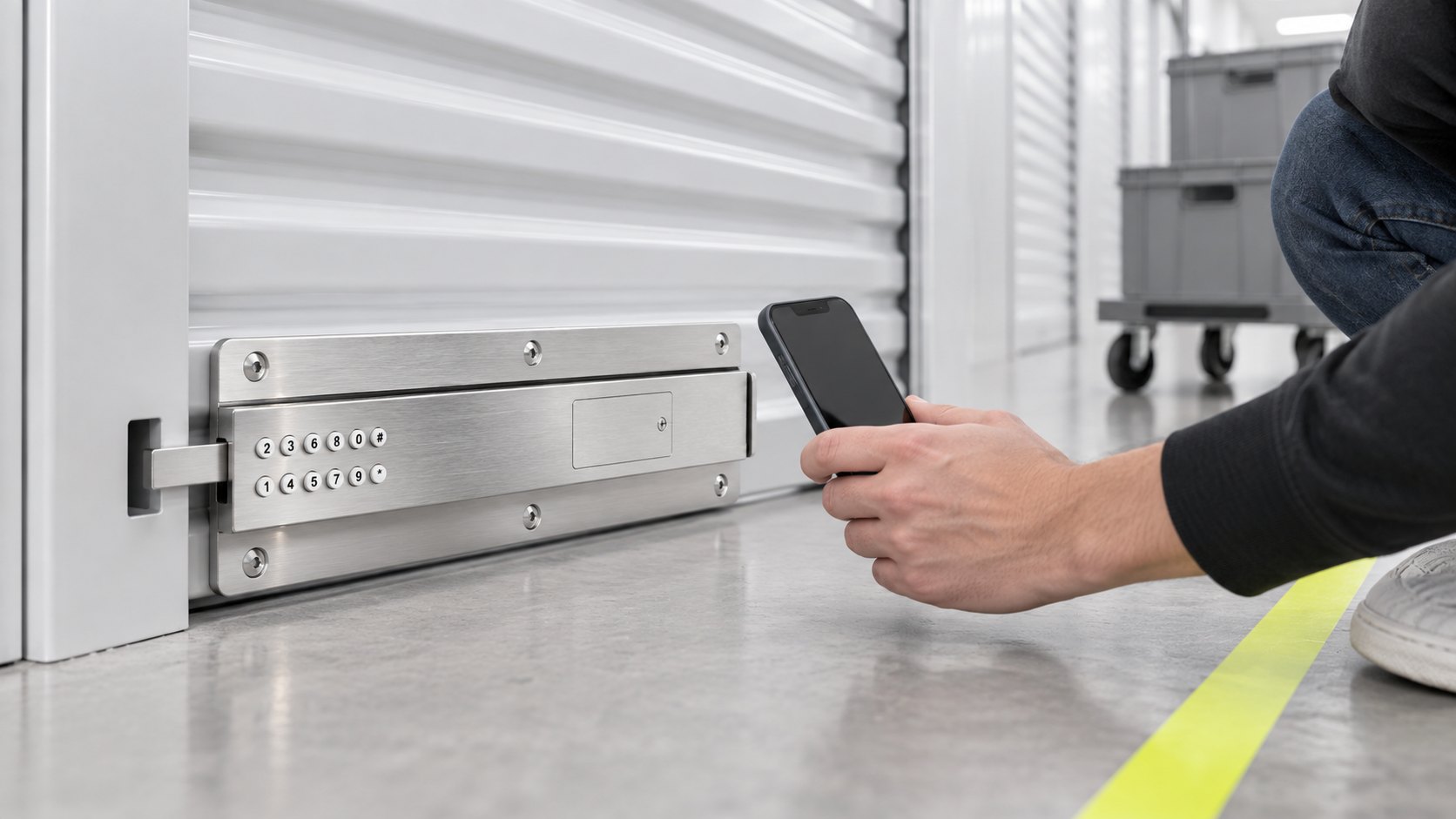

At the unit
The tenant opens the unit from the EliteLock App over Bluetooth, and the access is logged.
Questions
What operators ask first
No. It communicates over Bluetooth only, with no network dependency at the door, and supports offline operation.
