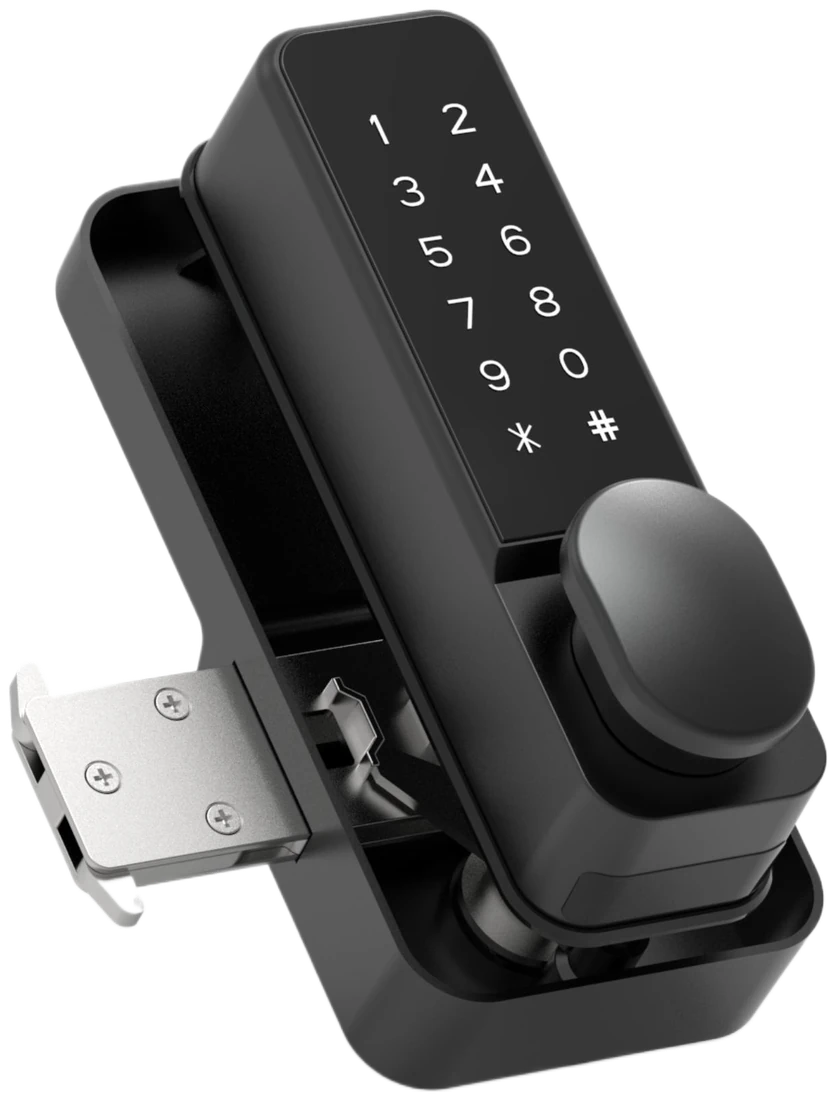

Smart Bolt
Smart locking for storage doors. Five ways to open.
An aluminum-alloy keypad lock for self-storage units, residential and commercial doors. Five ways to open one lock, with app management and backend integration.
- 0+ months
- Battery life
- ≤ 50 µA
- Standby current
- IP65
- Protection rating
- 2–10 mm
- Door thickness
Operator value
Built for the economics of self storage
Cost benefit
Cost-effective hardware that reduces running costs.
Remote control
Remote unlocking that saves on staffing costs.
Leasing status
Rented and vacant status with instant tracking.
Overdue customers
Lock overdue units and prevent overstaying.
One-click authorization
Instant permission and easy authorization.
Real-time monitoring
Battery usage and door status at a glance.
Access methods
Five ways to open one lock
Passcode, remote command, dynamic password, IC card and mechanical key. The lock runs on local operation with no network dependency.
- 01
Passcode
Touch-panel entry with anti-peep support.
- 02
Remote unlock
Opened remotely from the management backend.
- 03
Dynamic code
Temporary codes generated and shared in the app.
- 04
IC card
Optional card credential for alternative entry.
- 05
Mechanical key
Key override integrated into the lock body.
The mechanical key override stays available for emergency access, and a Type-C input supplies emergency power.
Product features
Engineered for daily operation
Aluminum alloy body
Powder-coated matte black, with a passivated, sandblasted lock bolt.
Acrylic glass touch panel
Touch-screen keypad with anti-peep entry. Status shows in the app or by LED.
Battery efficiency
Standby current of 50 µA or less. 12+ months in regular use on two CR2 batteries.
Semi-automatic latch
Fail-safe latch design, with the key override integrated into the body.
Front-access battery
Batteries change from the front, with no door disassembly.
Universal fit
Roll-up, swing and sliding doors from 2 to 10 mm thick. Toolkit included.
In place
What it looks like on the door

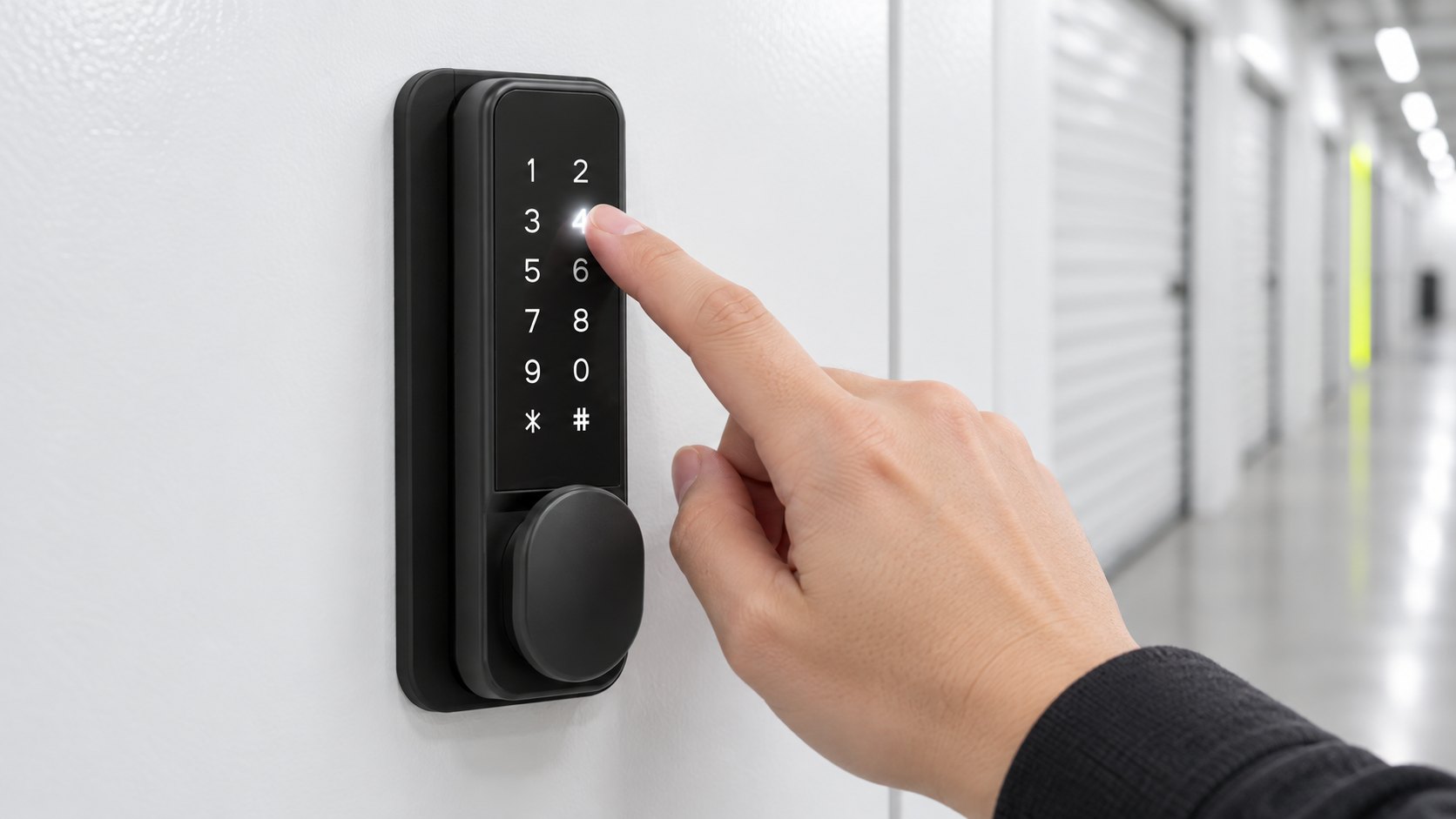

At the door
Touch-panel entry with anti-peep support, on the unit's swing door.

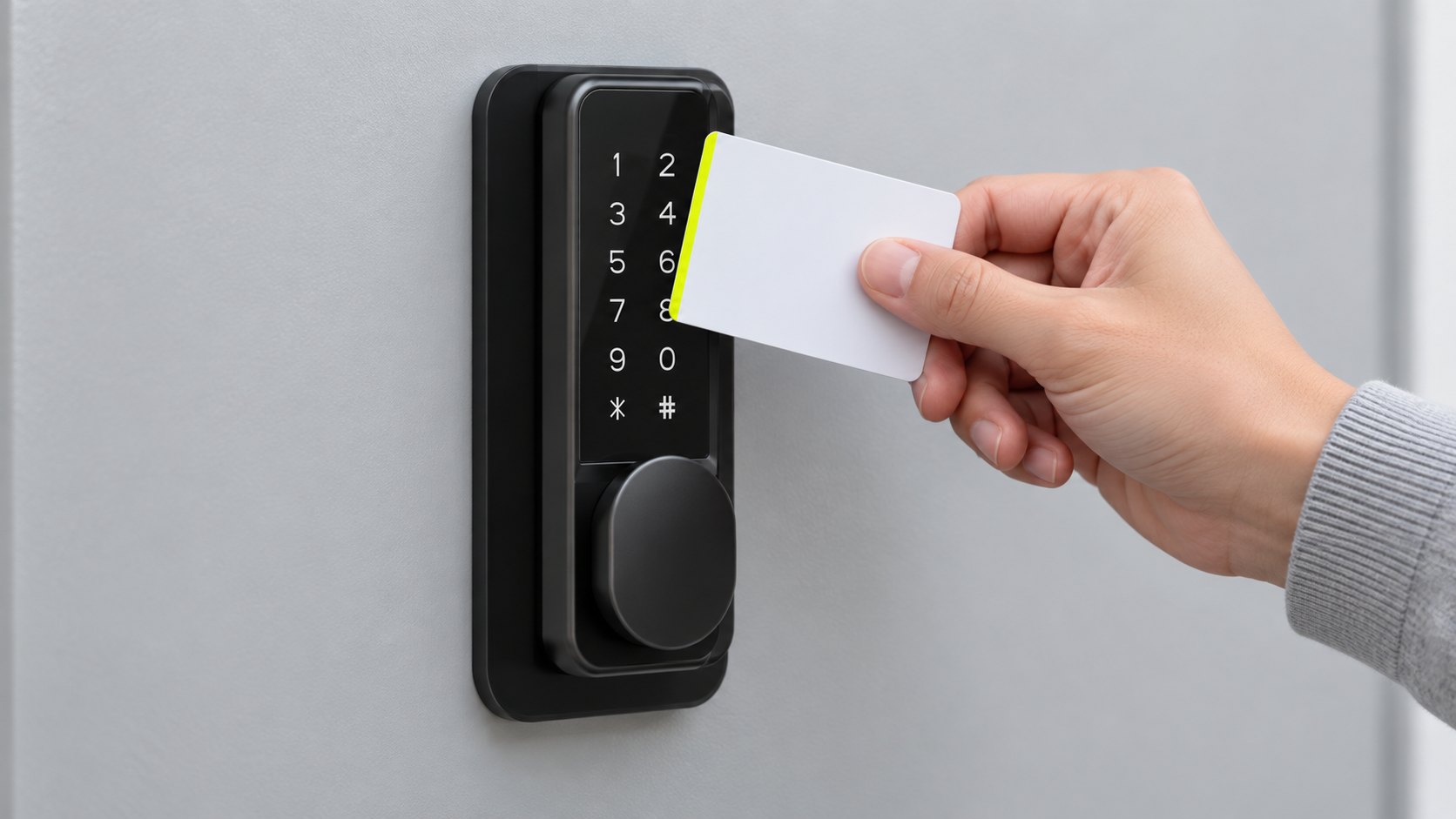

IC card
An optional card credential for alternative entry.

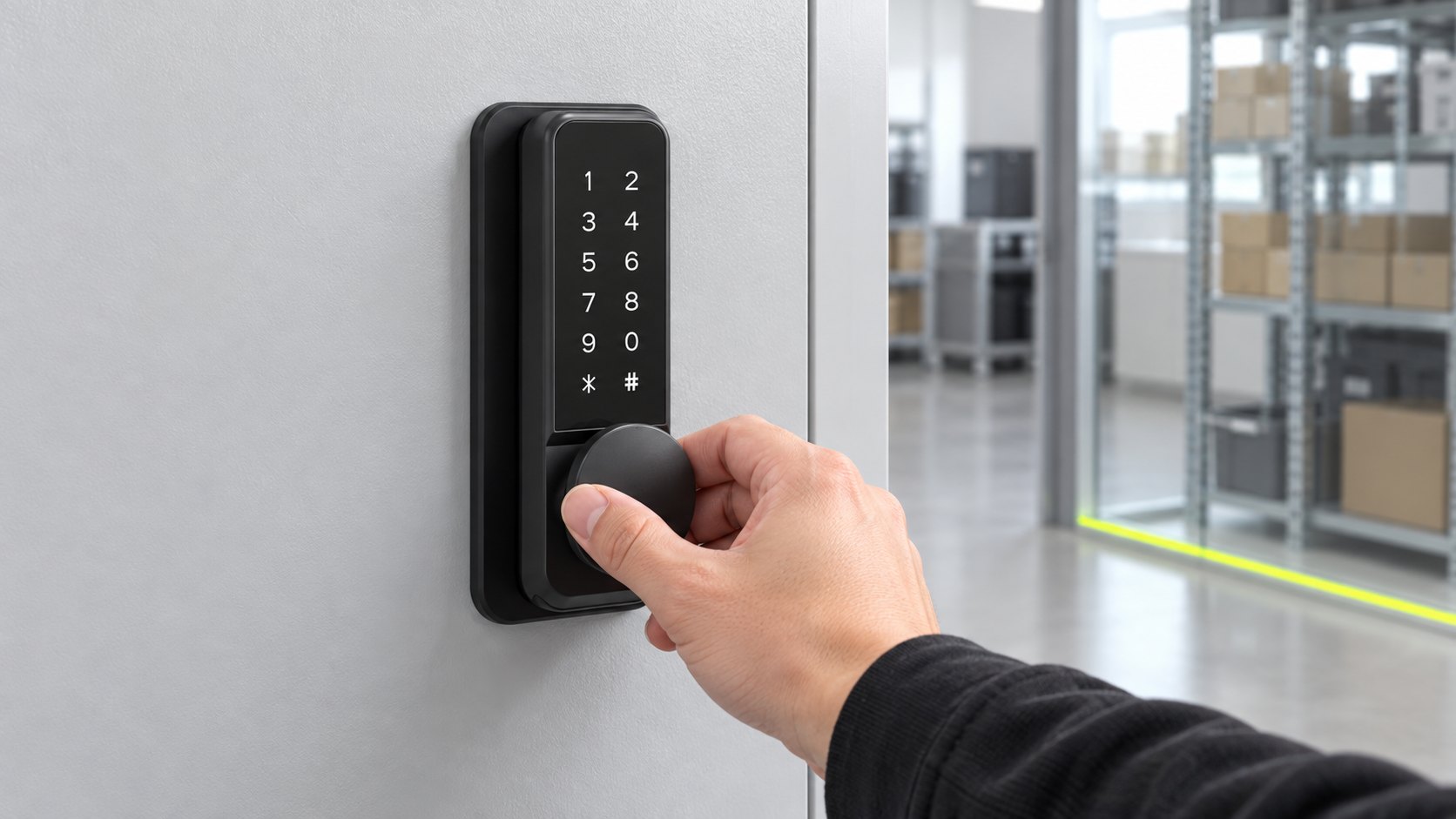

Commercial doors
The same lock serves residential and commercial doors from 2 to 10 mm thick.
Engineering details
Product specifications
- Body material
- Aluminum alloy, powder-coated matte black
- Lock bolt
- Passivated sandblasting
- Panel material
- Acrylic glass touch panel
- Display
- Touch screen · status via app or LED
- Lock weight
- Gross 320 g · net 280 g
- Power source
- 2 × CR2 batteries
- Battery life
- 12+ months · standby ≤ 50 µA
- Unlocking methods
- Passcode · remote · dynamic code · IC card · key
- Emergency power
- Type-C external input
- Emergency access
- Mechanical key override, integrated
- Communication
- Local operation · no network dependency
- Certification
- CE · FCC-ID · UN38.3 · IP65
- Door compatibility
- Roll-up, swing and sliding · 2–10 mm
Drag to turn
- 280 g
- Net weight
- 2 × CR2
- Power
- 2–10 mm
- Door thickness
Security architecture
One-time codes, encrypted transport, full access trail
Proprietary encryption, HTTPS transport and time-stamped access logs. Certified CE · FCC-ID · UN38.3 · IP65.
Proprietary algorithm
An in-house encryption algorithm generates one-time dynamic passwords, flexible and scalable while safeguarding user privacy.
Encrypted transport
HTTPS transport encryption protects data from interception or theft during transmission.
Access log tracking
Time-stamped passcode operations show who entered or left the unit. Logs export from the backend for auditing.
Dynamic access control
Temporary codes are generated and shared through the app, with anti-peep passcode entry at the door.
Management & integration
One lock. Connected to your management system.
EliteLock App
Everyday management
User codes, live status and lock diagnostics on the phone.
- Add or delete 50 user codes
- Real-time status monitoring
- Low-battery alerts
Backend integration
Remote visibility
Door and battery data reported back to the operator console.
- Door status, open or closed
- Remote battery levels
- Exportable access logs
Smart Bolt
Field device
Aluminum alloy body with a semi-automatic, fail-safe latch.
- Front-access battery change
- 2–10 mm door thickness
- Toolkit included
Third-party integration
A simple API connects the Smart Bolt to existing self-storage management systems, for individual operators and corporate clients alike.
Rollout
Fitted, authorized, opened

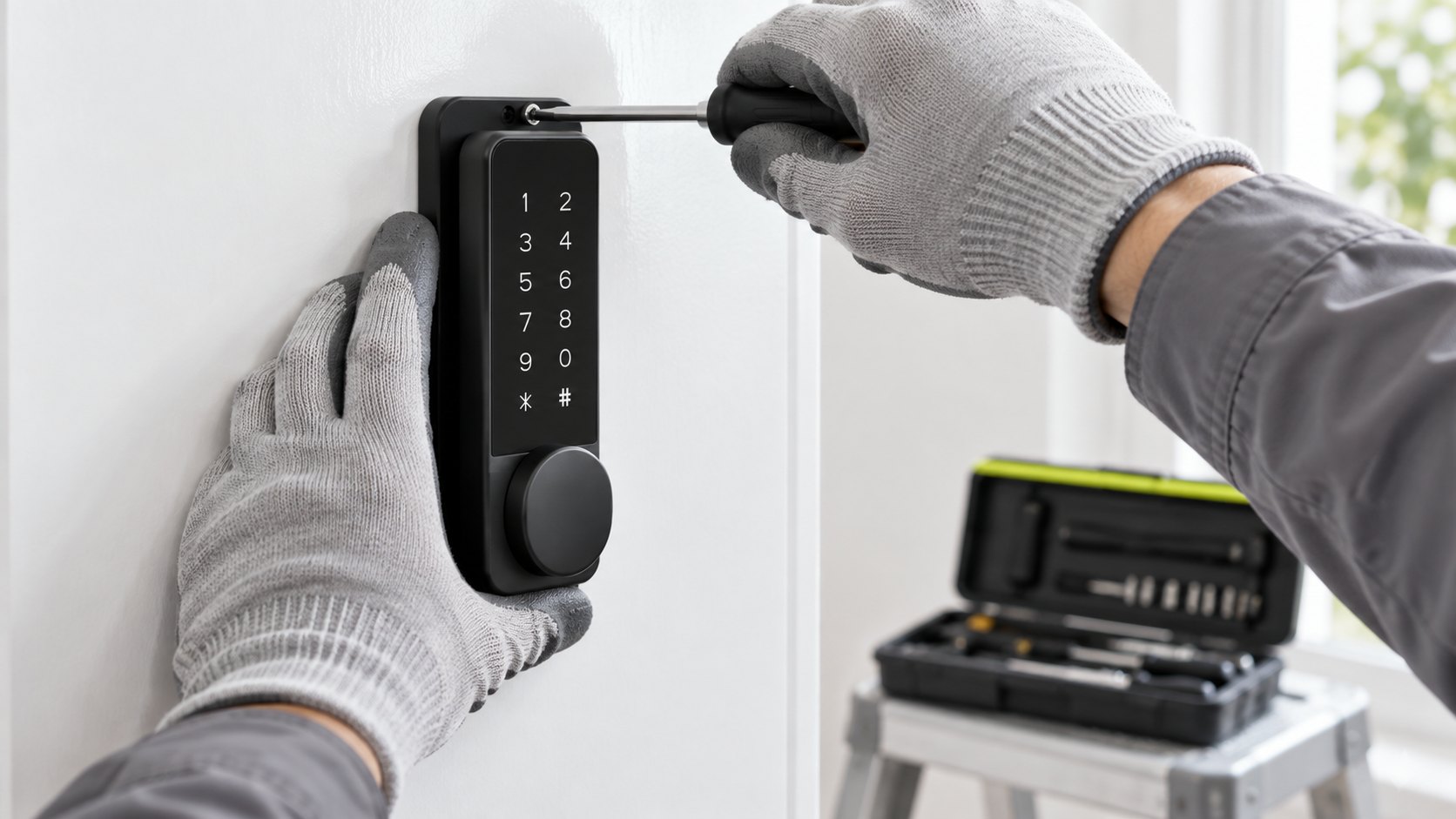

On the door
Fitted with the included toolkit. Batteries change from the front, with no door disassembly.

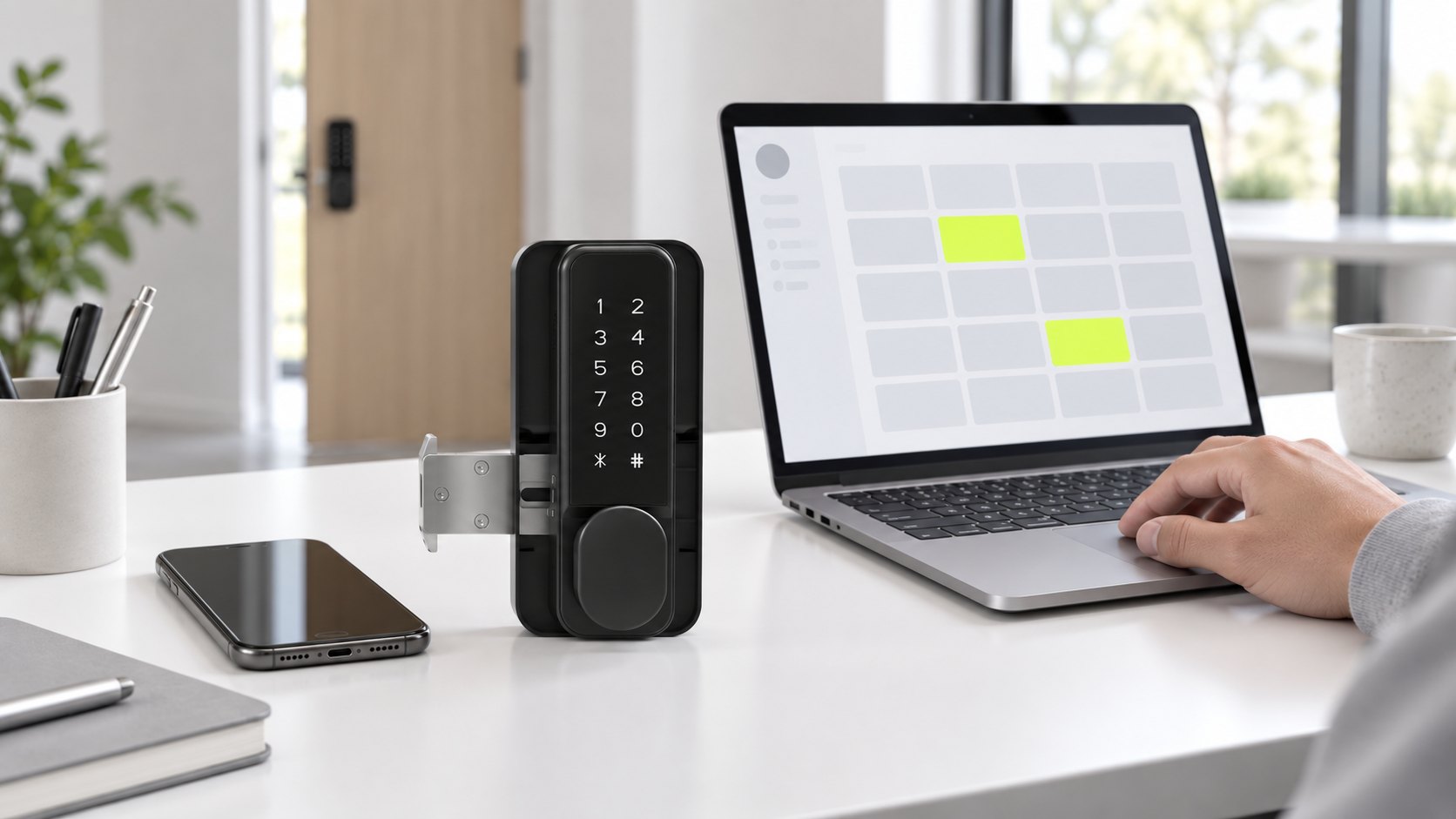

In the console
Door status, remote battery levels and exportable access logs, reported back to the operator.

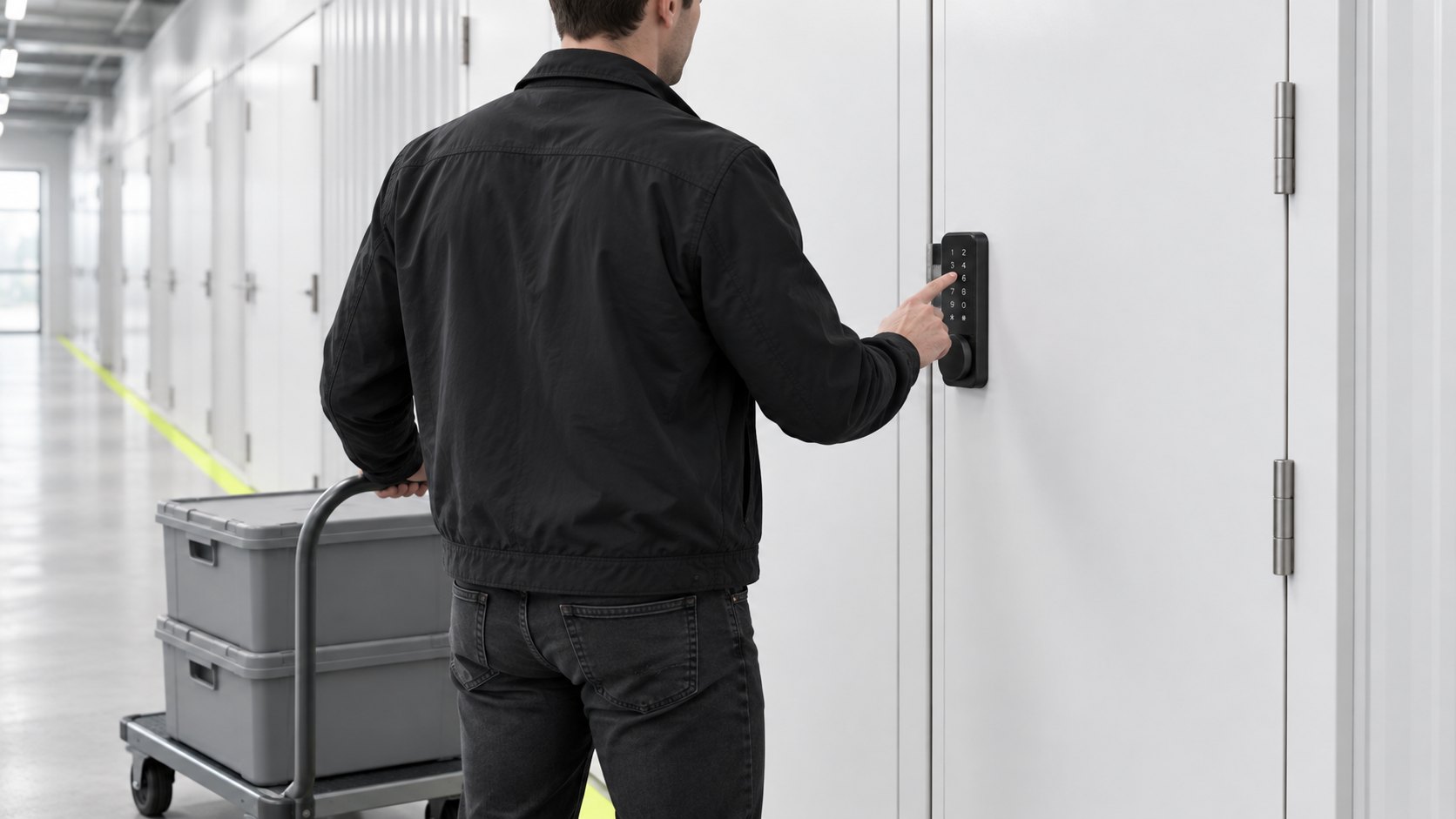

At the unit
Tenants enter their own code or a temporary dynamic code shared from the app.
Questions
What operators ask first
No. It runs on local operation with no network dependency and supports offline operation.
